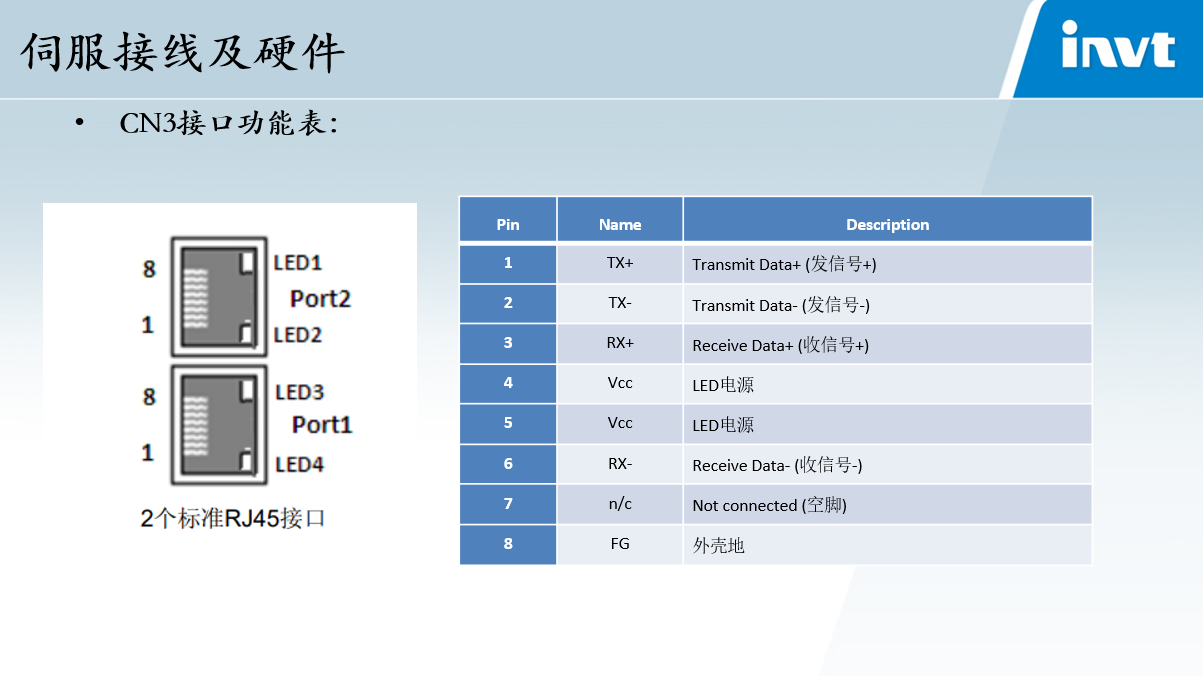

Pin | Name | Description |
1 | TX+ | Transmit Data+ (发信号+) |
2 | TX- | Transmit Data- (发信号-) |
3 | RX+ | Receive Data+ (收信号+) |
4 | Vcc | LED电源 |
5 | Vcc | LED电源 |
6 | RX- | Receive Data- (收信号-) |
7 | n/c | Not connected (空脚) |
8 | FG | 外壳地 |

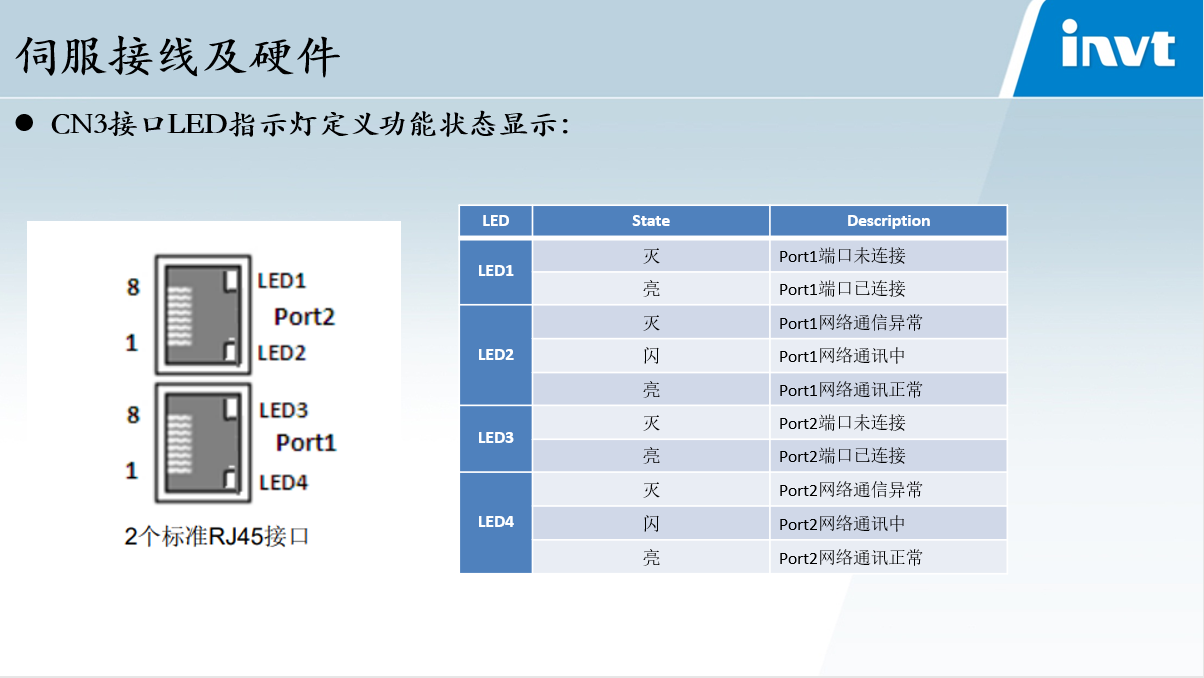

LED | State | Description |
LED1 | 灭 | Port1端口未连接 |
亮 | Port1端口已连接 | |
LED2 | 灭 | Port1网络通信异常 |
闪 | Port1网络通讯中 | |
亮 | Port1网络通讯正常 | |
LED3 | 灭 | Port2端口未连接 |
亮 | Port2端口已连接 | |
LED4 | 灭 | Port2网络通信异常 |
闪 | Port2网络通讯中 | |
亮 | Port2网络通讯正常 |
